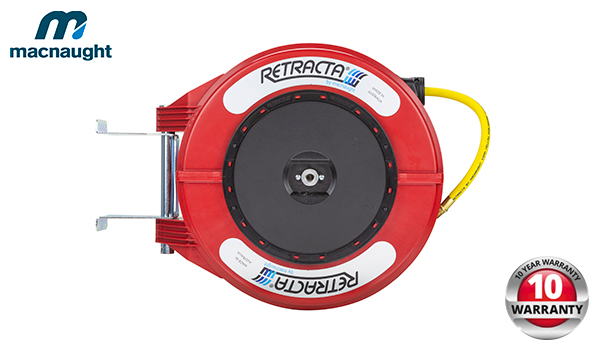

    • R3 Retracta Air Reel 15m x 1/2" I.D

      77002

      £359.65

      Features:
      Tough, corrosion free polypropylene construction
      Supplied with fitted hose for specified application
      New high-wear resistant mouth design
      Increased internal capacity
      Overrun protection on spring
      Upgraded main spring (Internal)
      Safe tensioning mechanism
      Fully serviceable - all parts readily available
      Optional RACR 'Retracta Adjustable Control Return' for all R3 models
      10 year warranty
      Alt Code: AR415R

      In the toughest environments across the world, the original Retracta polypropylene reel has built an enviable reputation for dependability. Building on this and with Macnaught’s long history of innovation and design, they have developed the exciting new Retracta R3. Engineered to create an even higher industry benchmark, the Retracta R3 has created new levels of efficiency and dependability into a new era. At the heart of this innovation is the patented RACR ‘Retracta Adjustable Control Return’ system, which can be supplied with or retro fitted to any R3 Retracta. This world first control return system offers true control by allowing the user to set the speed of return to suit their individual requirements. The RACR system is fully serviceable and carries the same 10 year warranty and parts guarantee found with the entire Retracta family.

      Hose Capacity 15 mtr (50')
      Hose ID 1/2" / 12.5mm
      Max Working Pressure 17 bar / 250 PSI
      Inlet / Outlet 3/8" BSPF 3/8" BSPM
      Hose Type Rubberised Reinforced PVC
      Reel Dimensions W: 225mm x H: 474mm x D: 621mm
      Approx Weight 13kg / 29lbs
